radial bladed fans

Wheel type

MHA

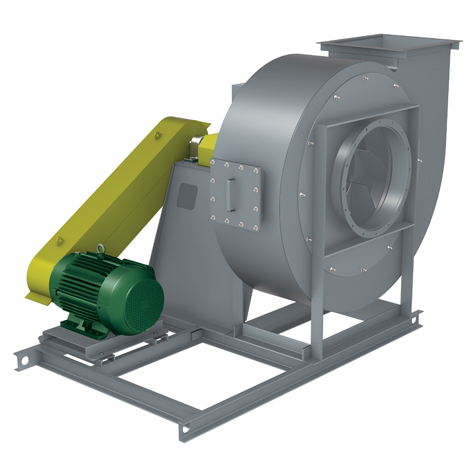

Industrial Radial Blade Fan,
Air Handling Wheel

Application

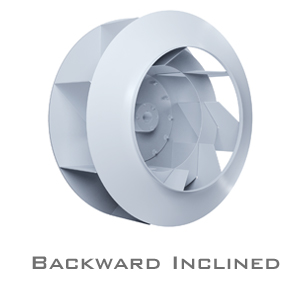

The MHA Industrial Radial Blade Fan incorporates a heavy-duty air handling wheel and is designed for handling relatively clean air, fumes, vapor exhaust and air with a light contaminant. The MHA wheel is constructed with heavy-gauge, backwardly inclined blades welded to both the backplate and front ring.

Sizes (wheel diameters)

  • 8.75 to 104.25 inches (225 mm to 2,650 mm)

Performance

  • Airflow to 141,800 CFM (240,900 m3/hour)
  • Static pressure to 32 inches w.g. (7,960 Pa)
