Axial fans

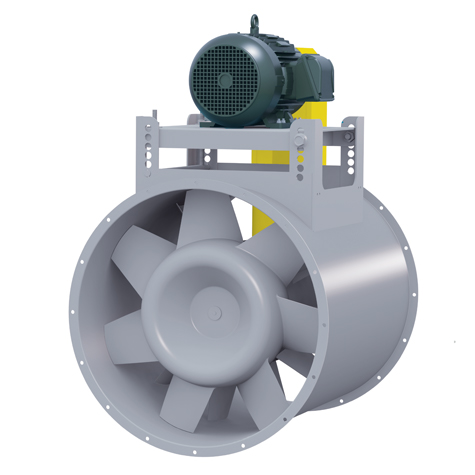

VSBD

Type S Vaneaxial Fan, Belt Driven
(Steel Propeller)

Application

The VSBD vaneaxial fan is designed for highly corrosive environments and high temperature applications where an aluminum wheel is not suitable. Standard construction can accommodate operation to 200°F (93°C) and can be customized to handle up to 300°F (148°C). Steel construction is standard on this unit. The VSBD is also available in stainless steel.

The VSBD’s steel propellers are manufactured with a spun steel hub. Steel blades are welded to the hub and can be attached at precise angles ranging from 30° to 50°.

Sizes (propeller diameters)

  • 12 to 54 inches (305 mm to 1,375 mm)

Performance

  • Airflow to 80,000 CFM (135,900 m3/hour)
  • Static pressure to 4 inches w.g. (990 Pa)
