Axial fans

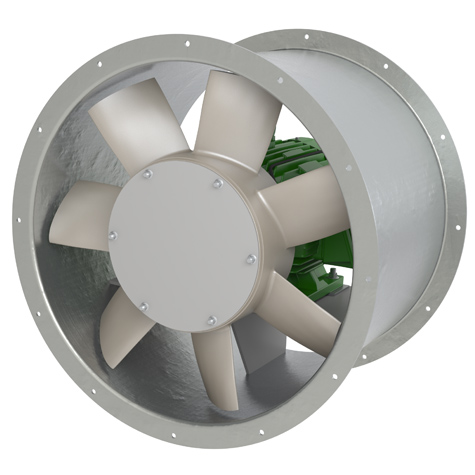

MDTM
Marine Duty Tubeaxial Fan,
Medium Pressure
Application
The MDTM Marine Duty Tubeaxial Fan is specifically designed for applications where a heavy-duty, compact design is required to minimize space, and where corrosion resistance is required against salt and water spray. Common marine duty applications include machinery ventilation, general bulkhead ventilation, cargo hold ventilation, engine room ventilation and heating and air conditioning systems.
Aerovent’s medium pressure marine duty fans use a one-piece cast aluminum impeller with fixed pitch blades. The blades can be cut to one of several diameters in order to provide various hub-to-tip ratios. Varying hub-to-tip ratios allow for different pressure and efficiency characteristics and the option of having several different impellers (different hub ratios) for a set diameter.
Sizes (impeller diameters)
- 12 to 60 inches (305 mm to 1,525 mm)
Performance
- Airflow to 102,900 CFM (174,800 m3/hour)
- Static pressure to 3 inches w.g. (745 Pa)
