radial bladed fans

impeller type

MHR

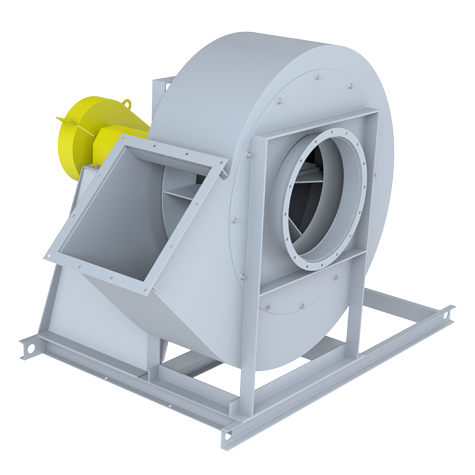

Industrial Fan, Paddle Impeller

Application

The MHR Industrial Fan incorporates a heavy-duty paddle impeller designed for general handling of coarse, sticky, heavy and/or abrasive materials. The MHR impeller is extremely rugged and is constructed of heavy-gauge steel.

Sizes (impeller diameters)

  • 45.13 to 85.25 inches (1,150 mm to 2,165 mm)

Performance

  • Airflow to 94,800 CFM (161,100 m3/hour)
  • Static pressure to 46 inches w.g. (11,440 Pa)

Link To Video Library

  • How To Videos
    (Inertia Base Installation, Rotor Removal & Installation, Sheave Installation, Unitary Base Installation, Impeller Removal & Installation, Piezometer Ring Installation)
