Plug & Plenum Fans

Wheel Type

CPLFN

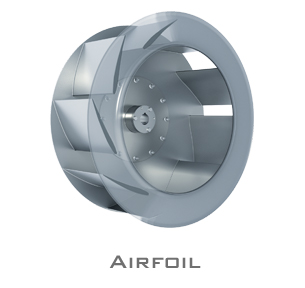

Plenum Fan, Airfoil Wheel, 9-Blades, Arrangement 1 & 4

Application

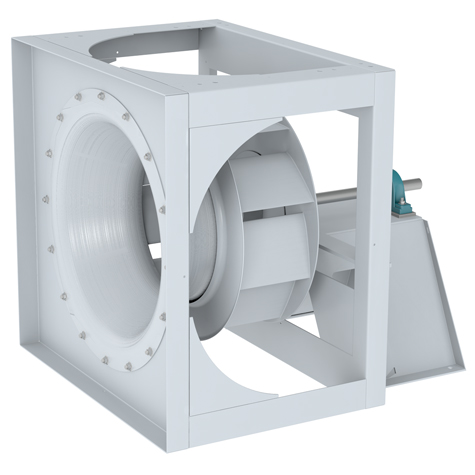

CPLFN plenum fans are used in field-fabricated or factory-built air handling units to pressurize the entire surrounding air plenum. This allows discharge ductwork to be directly connected to the air handler from any direction. The plenum fan design also saves space by eliminating the fan housing, transitions and diffusers within the air handling unit.

Sizes (wheel diameters)

  • 12.4 to 89 inches (315 mm to 2,265 mm)

Performance

  • Airflow to 280,000 CFM (475,700 m3/hour)
  • Static pressure to 10 inches w.g. (2,490 Pa)
