fiberglass

fans

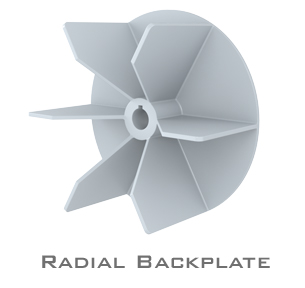

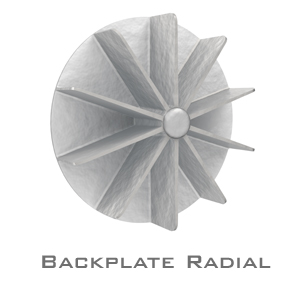

Impeller Type

RBF

Fiberglass Radial Blade
Centrifugal Fan

Application

The RBF fiberglass fan offers superior corrosion resistance to gases, fumes and vapors. The RBF’s fan housing features a solid FRP hand lay-up construction utilizing corrosion grade flame retardant vinyl ester resin. A glass veil is standard for airstream surfaces providing a resin rich liner to maximize chemical resistance.

The standard resin used for the RBF is resistant to a large variety of alkalis and other chemical agents. When a corrosion resistant fan is required to withstand chemicals that attack glass or polyester resin, special plastic and reinforcing material can be supplied.

Sizes (impeller diameters)

  • 10.63 to 57.5 inches (270 mm to 1,465 mm)

Performance

  • Airflow to 38,300 CFM (65,100 m3/hour)
  • Static pressure to 18 inches w.g. (4,480 Pa)

Link To Video Library

  • How To Videos
    (Inertia Base Installation, Rotor Removal & Installation, Sheave Installation, Unitary Base Installation, Impeller Removal & Installation, Piezometer Ring Installation)
