Axial fans

VBBD

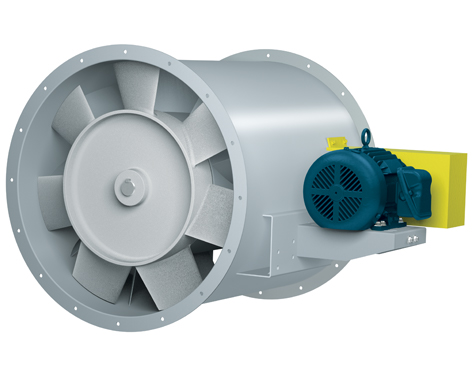

Type B Vaneaxial Fan, Belt Driven

Application

The VBBD, Type “B” vaneaxial fan is designed for high capacity applications requiring straight-line discharge and higher static pressures. The VBBD can be furnished with the reversed airflow for spray booth applications, air with corrosive contaminants, or high temperature applications.

The VBBD, Type “B” vaneaxial fan uses a one-piece cast aluminum propeller with fixed-pitch blades. No spinner is used on the propeller, which allows the use of corrosion resistant coatings and high temperature alloys. The propeller and guide vane section are designed to obtain higher static pressures and higher mechanical efficiencies than other axial flow fans. The function of the guide vane section is to improve the efficiency and the pressure characteristics by minimizing turbulence downstream from the fan and converting rotational energy at the propeller discharge into useful work.

Sizes (propeller diameters)

  • 12 to 60 inches (305 mm to 1,525 mm)

Performance

  • Airflow to 108,500 CFM (184,300 m3/hour)
  • Static pressure to 8 inches w.g. (1,990 Pa)
