Axial fans

VB

Type B Vaneaxial Fan, Direct Drive

Application

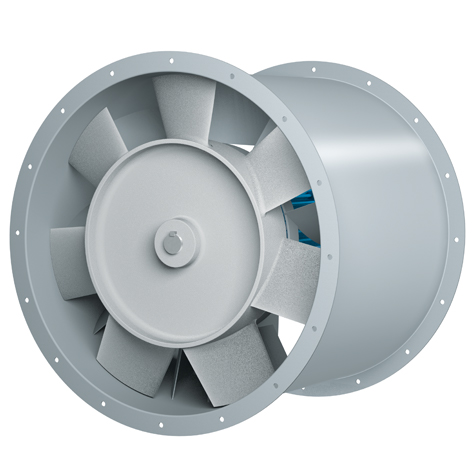

The VB, Type “B” vaneaxial fan is designed for high capacity applications requiring straight-line discharge and higher static pressures. The VB can be furnished with the reversed airflow for spray booth applications, air with corrosive contaminants, or high temperature applications.

The VB, Type “B” vaneaxial fan uses a one-piece cast aluminum propeller with fixed-pitch blades. No spinner is used on the propeller, which allows the use of corrosion resistant coatings and high temperature alloys. The propeller and guide vane section are designed to obtain higher static pressures and higher mechanical efficiencies than other axial flow fans. The function of the guide vane section is to improve the efficiency and the pressure characteristics by minimizing turbulence downstream from the fan and converting rotational energy at the propeller discharge into useful work.

Sizes (propeller diameters)

  • 24 to 48 inches (610 mm to 1,200 mm)

Performance

  • Airflow to 59,500 CFM (101,100 m3/hour)
  • Static pressure to 4 inches w.g. (990 Pa)
