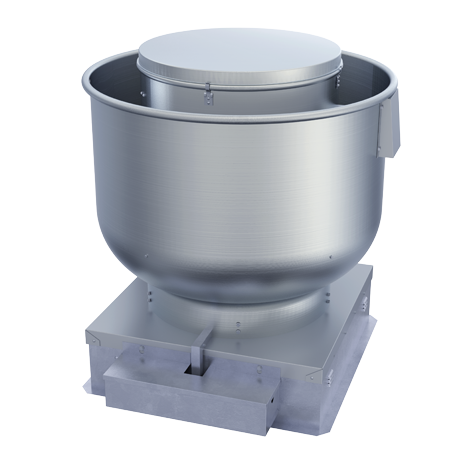

Centrifugal Kitchen Roof Ventilator, Upblast, Belt Driven

Application

The ATBR roof ventilator is designed for roof mounted exhaust of grease-laden air from kitchens, restaurants, cooking and dishwasher hoods that require the exhausted air to be moved up and away from the building. The ATBR features a high efficiency, non-overloading backward inclined centrifugal impeller precisely matched to a deep spun venturi. The impeller, motor and drive assembly are completely isolated from the fan supports by rubber isolators to reduce transmission of noise and vibration. The top cap also provides complete protection for the motor and drive assembly, while allowing quick access to these components without the need for tools.

Sizes (impeller diameters)

  • 12.25 to 39.37 inches (315 mm to 1,000 mm)

Performance

  • Airflow to 20,700 CFM (35,200 m3/hour)
  • Static pressure to 3.25 inches w.g. (810 Pa)

Installation Manual

  • Centrifugal Powered Roof Ventilators – IM-121
    [English]   [Spanish]
