fiberglass

fans

VTFBD

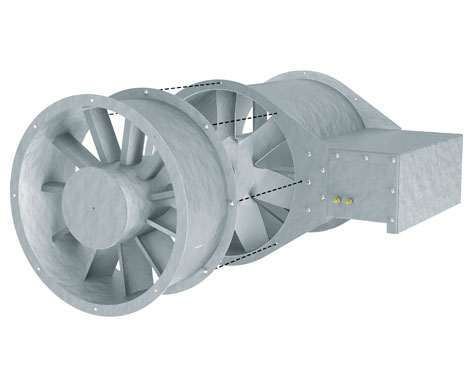

Fiberglass Type TF Vaneaxial Fan,
Belt Driven

Application

A vane section is added to Model TFBD to convert it to a Model VTFBD vaneaxial fan for applications requiring improved performance. The standard FRP resin used for the VTFBD is resistant to a large variety of alkalis and other chemical agents. When a corrosion resistant fan is required to withstand chemicals that attack glass or polyester resin, special plastic and reinforcing material can be supplied.

Sizes (propeller diameters)

  • 12 to 60 inches (305 mm to 1,525 mm)

Performance

  • Airflow to 81,200 CFM (138,000 m3/hour)
  • Static pressure to 4 inches w.g. (1,000 Pa)
