fiberglass

fans

FBD

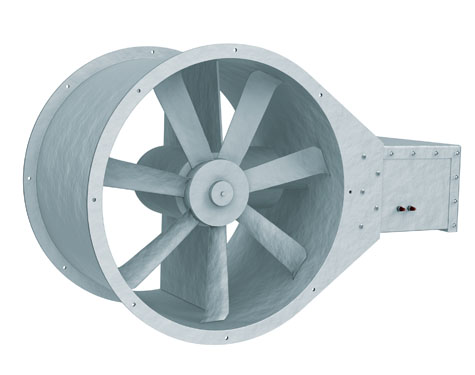

Fiberglass Type FG7 Tubeaxial Fan,
Belt Driven

Application

The Model FBD belt driven tubeaxial fan is constructed from corrosion-resistant FRP and utilizes the Type FG propeller for medium performance range requirements. The standard resin used for the FBD is resistant to a large variety of alkalis and other chemical agents. When a corrosion resistant fan is required to withstand chemicals that attack glass or polyester resin, special plastic and reinforcing material can be supplied.

Sizes (propeller diameters)

  • 14 to 60 inches (355 mm to 1,525 mm)

Performance

  • Airflow to 51,900 CFM (88,200 m3/hour)
  • Static pressure to 1.5 inches w.g. (370 Pa)
