Centrifugal fans

Wheel type

CB-SW

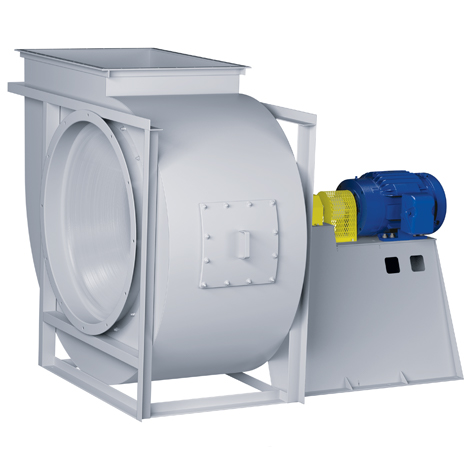

Backward Inclined Centrifugal Fan, SWSI

Application

The CB-SW centrifugal fan is designed to handle large volumes of relatively clean air at low to moderate pressures in applications such as HVAC, combustion air supply, filtration and drying systems, fume hood and spray booth as well as other exhaust systems, air pollution control (clean side of dust collectors) and industrial processes. The CB-SW features a backward inclined wheel constructed of steel using flat single thickness blades, solid welded to the rim and backplate.

Sizes (wheel diameters)

  • 12.25 to 98.25 inches (315 mm to 2,495 mm)

Performance

  • Airflow to 277,500 CFM (471,500 m3/hour)
  • Static pressure to 20 inches w.g. (4,970 Pa)
