Centrifugal fans

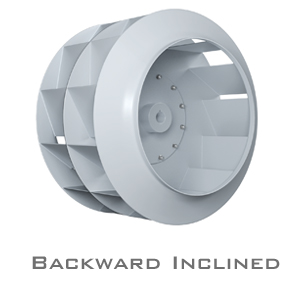

Wheel type

CB-DW

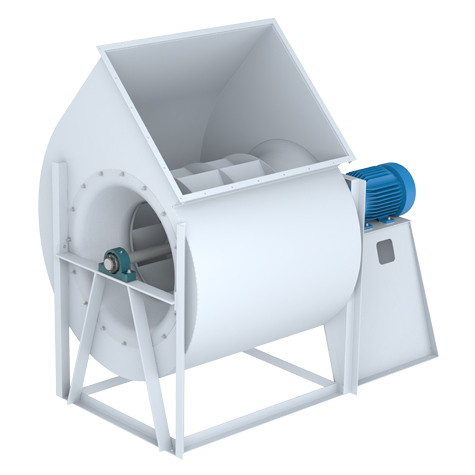

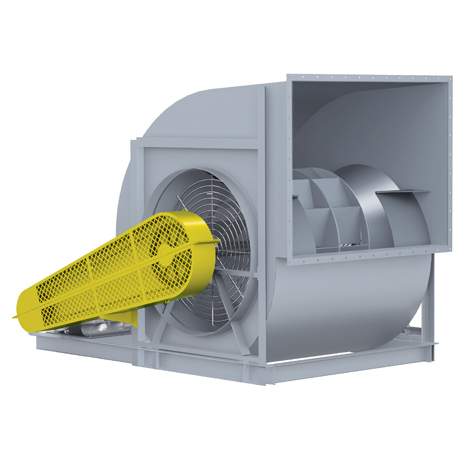

Backward Inclined Centrifugal Fan, DWDI

Application

The CB-DW centrifugal fan is designed to handle large volumes of relatively clean air as required in heating, ventilating, and air conditioning systems and many industrial air supply and exhaust applications.

Sizes (wheel diameters)

  • 12.25 to 89 inches (315 mm to 2,260 mm)

Performance

  • Airflow to 344,300 CFM (585,000 m3/hour)
  • Static pressure to 14 inches w.g. (3,480 Pa)

Link To Video Library

  • How To Videos
    (Inertia Base Installation, Rotor Removal & Installation, Sheave Installation, Unitary Base Installation, Wheel Removal & Installation, Piezometer Ring Installation)
