Centrifugal fans

Impeller Type

CAE-SW

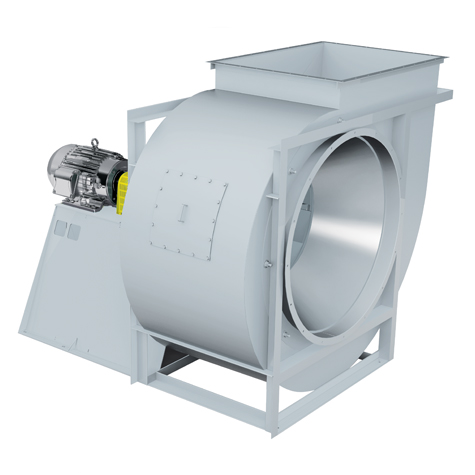

Airfoil Centrifugal Fan, SWSI

Application

The CAE-SW Centrifugal Fan is designed to handle large volumes of relatively clean air at low to moderate pressures in applications such as HVAC, combustion air supply, filtration and drying systems, fume hood and spray booth and other exhaust systems, air pollution control (clean side of dust collectors) and other industrial processes.

The CAE-SW is constructed with an airfoil impeller and incorporates hollow airfoil blades for higher efficiencies and better sound quality. All housings are reinforced with rigid bracing to increase structural integrity. The support angles are intermittently welded and caulked between welds to prevent bleed-through corrosion.

Sizes (impeller diameters)

  • 12.25 to 98.25 inches (315 mm to 2,500 mm)

Performance

  • Airflow to 233,100 CFM (396,000 m3/hour)
  • Static pressure to 20 inches w.g. (4,970 Pa)
