Axial fans

TA

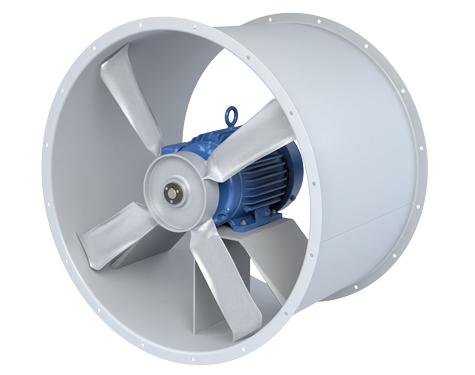

Tubeaxial Fan, Direct Drive

Application

The TA tubeaxial fan is designed for relatively clean air applications that permit the location of motor to be in the airstream. The TA features the Macheta® tipped cast aluminum airfoil blade for increased performance, and a continuously welded, heavy-gauge flanged casing with bolt holes for mounting to fan accessories or ductwork.

All propellers and hubs are cast from 319 aluminum as standard. Propeller sizes 12 through 72 inches are cast solid. Sizes 84 inches and larger are adjustable pitch with individual blades and hub. For specific applications such as high temperature environments (600°F, 315°C maximum), cast solid propellers are available in A240 aluminum alloy and, for corrosive environments, propellers are available in Dura-Metal (aluminum bronze, 500°F, 260°C maximum) alloy.

Sizes (propeller diameters)

  • 12 to 96 inches (305 mm to 2,440 mm)

Performance

  • Airflow to 132,500 CFM (225,100 m3/hour)
  • Static pressure to 1.5 inches w.g. (370 Pa)
