TWBD

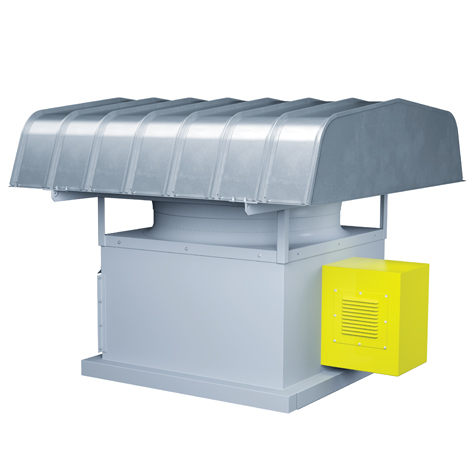

Tu-Way Roof Ventilator, Belt Driven

Application

The TWBD roof ventilator is designed for corrosive environments and when temperatures exceed the motor insulation rating. The model TWBD features a reversible propeller design that is equally efficient and moves the same amount of air in either supply or exhaust direction.

Tu-WAY™ fans are designed to allow the hood to be raised for easy access to the propeller. Access doors are standard for maintenance or removal of motor, drives and damper (optional). Reversing the propeller rotation is performed by moving the motor starter switch to the opposite position. This permits the motor to come to a complete stop before restarting in the opposite direction.

Sizes (propeller diameters)

  • 24 to 72 inches (610 mm to 1,830 mm)

Performance

  • Airflow to 88,900 CFM (151,000 m3/hour)
  • Static pressure to 0.5 inches w.g. (120 Pa)
