ATDWR

Centrifugal Kitchen Wall Ventilator, Direct Drive

Application

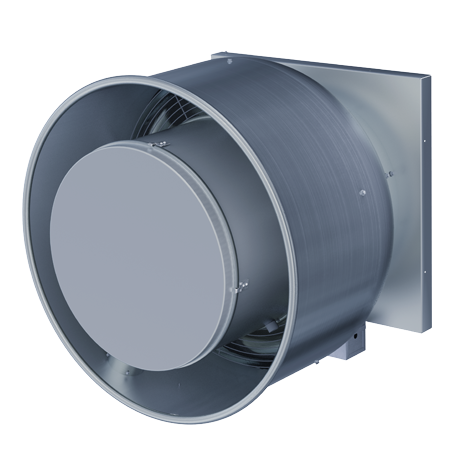

The ATDWR wall exhauster is specifically designed for horizontal wall-mounted configurations exhausting grease-laden air from kitchens, restaurants, cooking and dishwasher hoods where upblast exhaust is not feasible. The ATDWR features a high efficiency, non-overloading backward inclined centrifugal impeller precisely matched to a deep spun venturi. The impeller, motor and drive assembly are completely isolated from the fan supports by rubber isolators to reduce transmission of noise and vibration. The top cap also provides complete protection for the motor and drive assembly, while allowing quick access to these components without the need for tools.

Sizes (impeller diameters)

• 18.25 inches (465 mm)

Performance

• Airflow to 3,865 CFM (6,600 m³/hour)
• Static pressure to 1.5 inches w.g. (370 Pa)
