ATDR

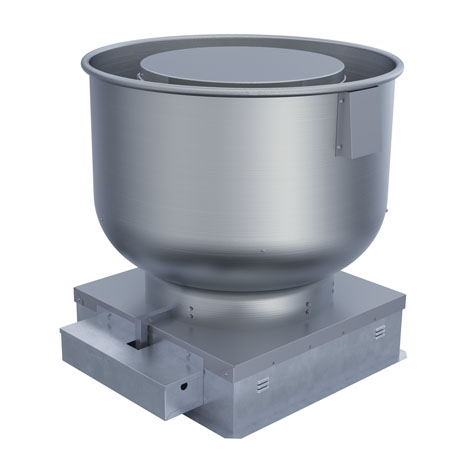

Centrifugal Kitchen Roof Ventilator, Upblast, Direct Drive

Application

The ATDR roof exhauster is designed for roof mounted exhaust of grease-laden air from kitchens, restaurants, cooking and dishwasher hoods that require the exhausted air to be moved up and away from the building. The ATDR features a high efficiency, non-overloading backward inclined centrifugal wheel precisely matched to a deep spun venturi. The wheel, motor and drive assembly are completely isolated from the fan supports by rubber isolators to reduce transmission of noise and vibration. The top cap also provides complete protection for the motor and drive assembly, while allowing quick access to these components without the need for tools.

Sizes (wheel diameters)

  • 8.38 to 18.25 inches (215 mm to 465 mm)

Performance

  • Airflow to 3,865 CFM (6,600 m3/hour)
  • Static pressure to 1.5 inches w.g. (370 Pa)
