Axial fans

FTFA

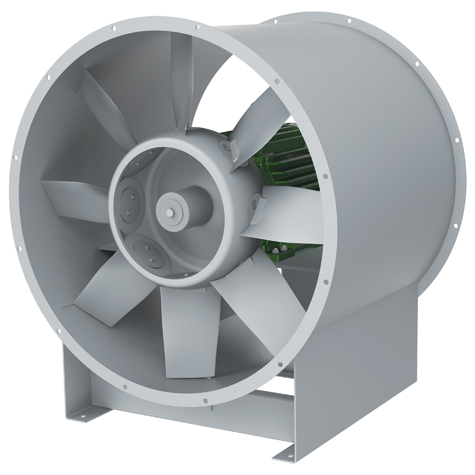

Axiad II Adjustable Pitch
Airfoil Axial Flow Fan

Application

The FTFA Axiad II Axial Flow Fan is designed for clean air applications. The FTFA features high strength adjustable pitch cast aluminum blades that can be individually adjusted. This allows for easy system balancing or adjustment for unpredictable duct losses. It also permits changing fan characteristics to match changing job conditions. Since the blades can be changed in pitch approximately 35°, a wide variation in performance is possible.

Sizes (propeller diameters)

  • 22 to 55 inches (560 mm to 1,400 mm)

Performance

  • Airflow to 100,000 CFM (169,900 m3/hour)
  • Static pressure to 15 inches w.g. (3,730 Pa)
