Axial fans

ATABD

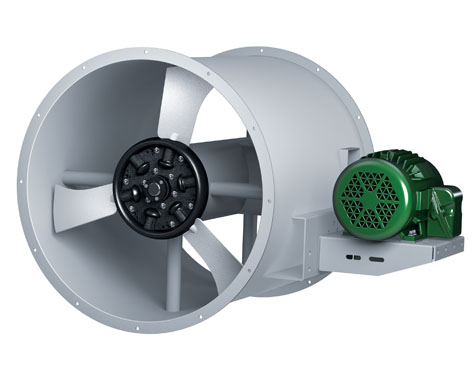

Axipal Tubeaxial Fan, Belt Driven

Application

The ATABD adjustable pitch tubeaxial fan is designed for where it is advantageous to have the motor out of the airstream due to the presence of corrosive or hazardous fumes, or dirt-laden, hot, or moist air. ATABD features a unique blade design that maximizes energy transfer to the airstream with minimum noise. The blade pitch can be individually manually adjusted while the fan is stopped. This feature allows the user to balance the present system while affording the flexibility of further possible pitch adjustment in the future.

Sizes (propeller diameters)

  • 15.61 to 48.78 inches (400 mm to 1,240 mm)

Performance

  • Airflow to 65,100 CFM (110,600 m3/hour)
  • Static pressure to 2.5 inches w.g. (620 Pa)
