Air Make-up units

S / SACDW / SACSW

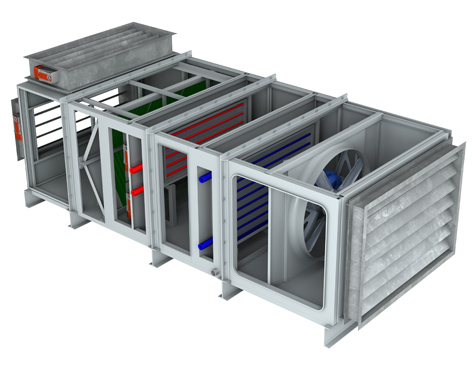

Steam-Air Make-Up Units

Application

Steam distributing tube coil gives good temperature distribution, maximum freeze protection and allows the tubes to expand without transmitting stresses to the tubes. Propeller and centrifugal models are available. The centrifugal unit is available with backward inclined or forward curved airfoil blades. Units come assembled and include fan, coil, vacuum breaker and motorized shutter.

Performance

  • Capacities to 60,000 CFM (101,900 m3/hour)
  • Capacities from 343,000 to 5,000,000 Btu/hr

Installation Manual

  • Not Available
